Project Description

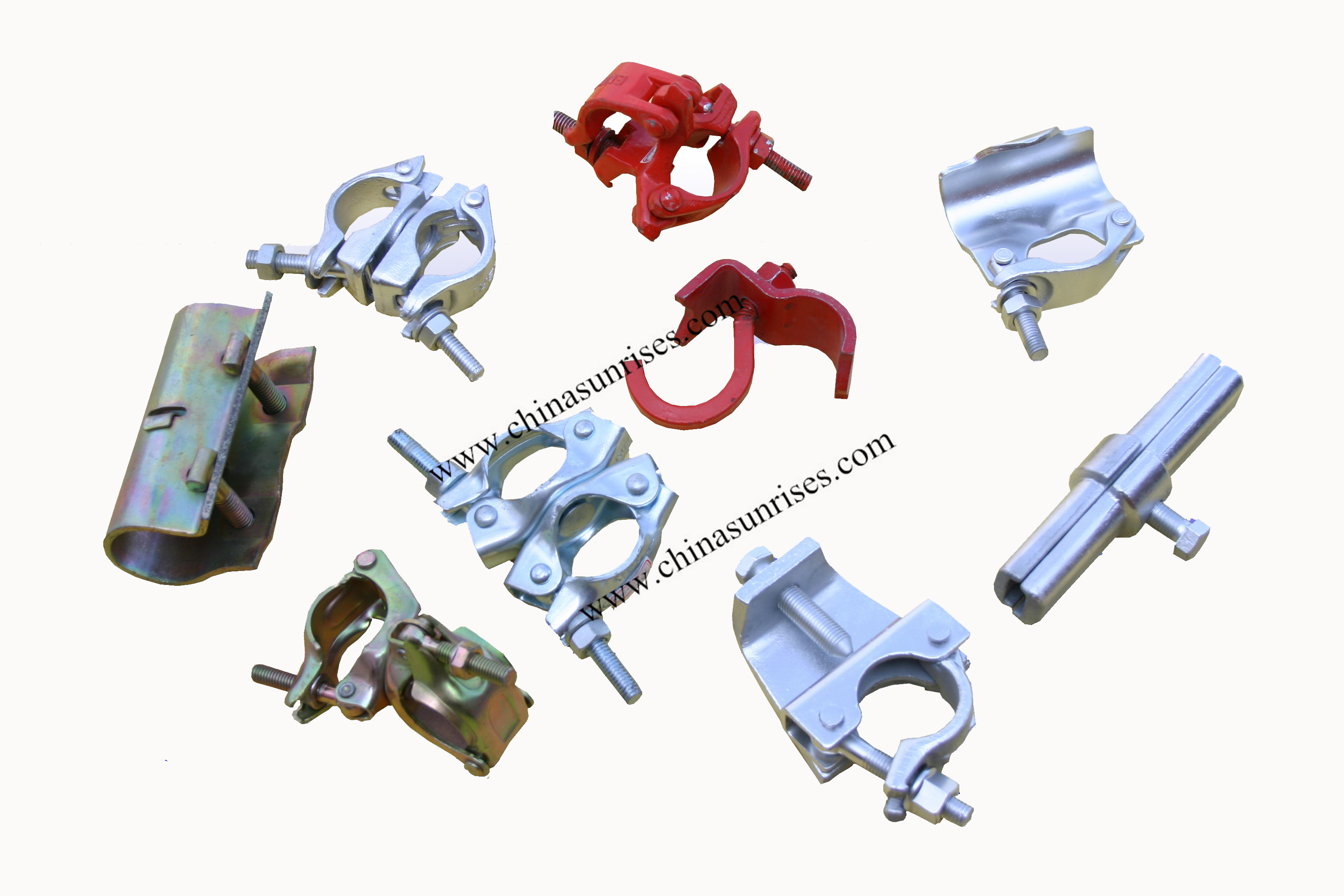

Various Scaffolding Couplers
Fixed and swivel Scaffolding Couplers
Specification: 48X48 48X60 60X60
Material: Q235 Q345
Surface Treatment: Painted, Powder Coating, Galvanized or HDG
Specification
| Product name | Scaffolding couplers |
| Type | Right-angle coupler, swivel coupler, connecting coupler |
| Materials | Q235/Q345 grade steel |
| Standard | EN74/BS1139/SGS/CE/ISO9001:2000 |
| Dimensions | 48.3×48.3mm/48.3×60.3mm/48.3×76.3mm |
| Nut size | 17/19/21/23mm |
| Strength of T bolts | Class 4.8/6.8/8.8 |
| Surface Treatment | Cold galvanized, Hot dip galvanized, Painted, Powder coating |
| Appearance color | red paint, blue paint, yellow paint, green paint, bright galvanized |
| Standard weight | 0.85kg, 0.9kg,1kg,1.1kg,1.2kg |
| Feature | High Breaking Strength/Durable/Easy to Assemble and Dismantle |
| Packing | 25 pcs/woven bags |
