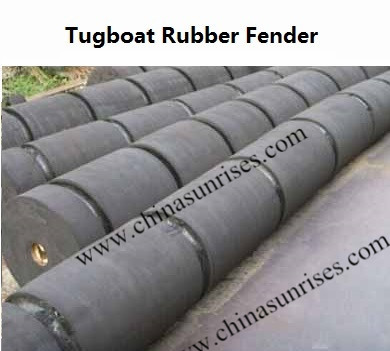

Tugboat Rubber Fender

It is typically mounted on the bow,stern and both sides of towing boat or pushing boat.It can effectively reduce the impact force between the ship and the dock and that between ships.hence,it is ideal for preventing boats and dock from being damaged by the impact force.
It can be mounted onto dock,bow, stern and both sides of a towboat or push boat,thus allowing the boats to perform towing and pushing in safe conditions.
Designed in an intergral structure,the rubber fender offers reliable performance and it is easy for installation.

Type	Inner Dia	Outer Dia		Length of product	Note
	(d)	(D)		(L)
		D	D’
Φ200×Φ100×L	100	200		500-20000	Straight type
Φ300×Φ150×L	150	300
Φ400×Φ200×L	200	400
Φ500×Φ220×L	220	500
Φ500×Φ250×L	250	500
Φ600×Φ300×L	300	600
Φ700×Φ350×L	350	700
Φ750×Φ350×L	350	750
Φ800×Φ400×L	400	800
Φ400×Φ300×Φ200×L	200	400	300		Cone type
Φ500×Φ400×Φ250×L	250	500	400
Φ600×Φ450×Φ250×L	250	600	450
Φ700×Φ500×Φ300×L	300	700	500
Φ750×Φ450×Φ250×L	250	750	450
Φ760×Φ500×Φ300×L	300	760	500
Φ800×Φ600×Φ400×L	400	800	600
