Project Description

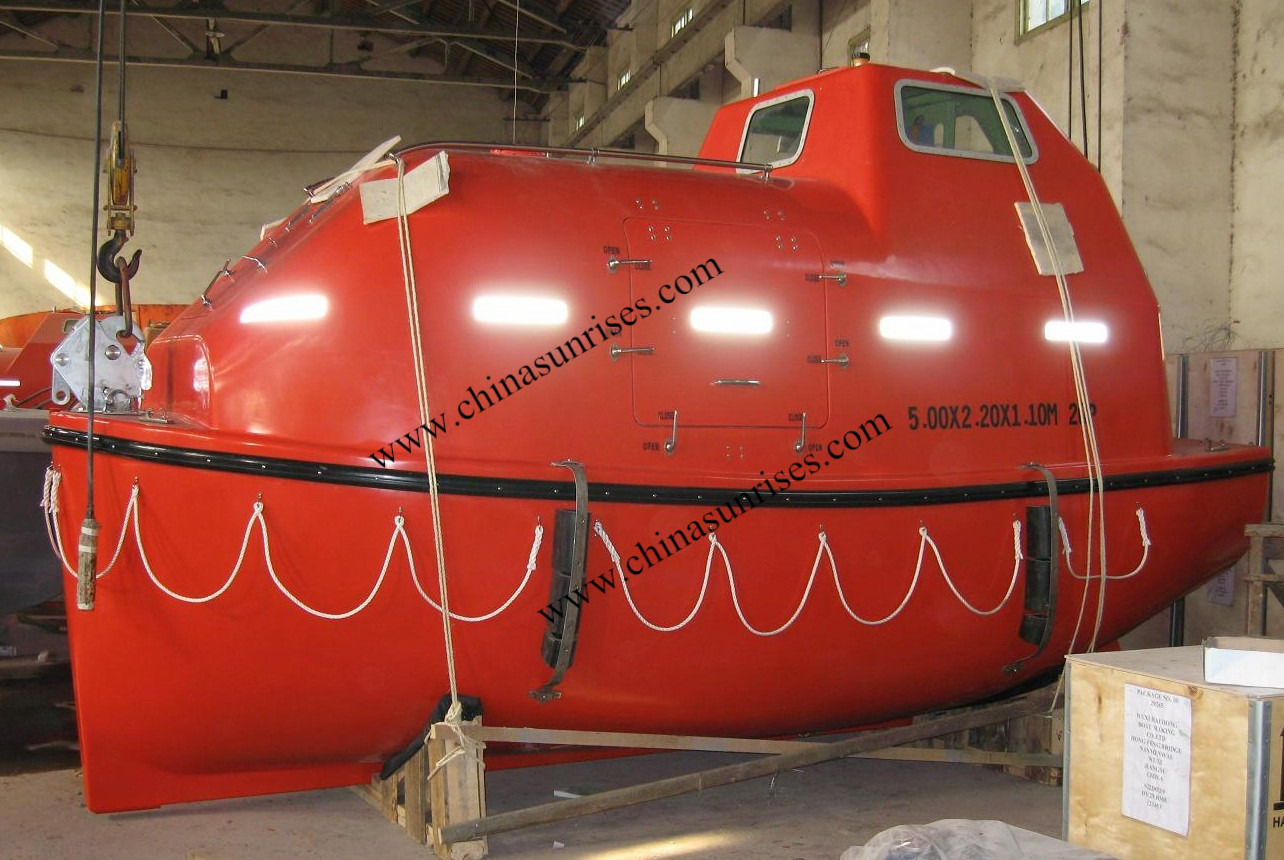

Totally Enclosed Lifeboat
Totally Enclosed Lifeboat/Rescue Boat is produced according to the latest regulation of SOLAS and rules of international lifesaving appliances(LSA),revision bill of MSC.218(82)、MSC.272(85)and resolutions of MSC.81(70),Revision bill of MSC.226(82)、MSC.272(85), which is applied in severe sea conditions, suitable for ocean-going freighter and liner and oil tanker etc. The tanker versions have higher fire resistant characteristics with the combine function of life-saving and rescue.
Product Name : Totally Enclosed Lifeboat and Rescue Boat
Product No. : 1.1.1
Capacity: From 21 P to 106 P
Length Range: Be available from 5.00m to 10.30m
Engine: SIYANG、YANMAR Or BUKH.
Two Types: Cargo Version and Tanker Version.
Certificate : Various types of Classification Society Certificates can be supplied such as : LR, NK,ABS, DNV GL, KR,BV,RINA and CCS etc.
Country of Origin : CHINA
| Model | Main Dimension(m) | Person (P) | Hook Distance(m) | Engine/Power (kw) | Light Weight(kg) | Fully Loaded Weight(kg) |
| BC-5.0M | 5.00×2.20×1.10 | 25 | 4.60 | 380J-3/20.6 | 2105 | 4167.5 |
| BF-5.0M | 5.00×2.20×1.10 | 25 | 4.60 | 2400 | 4462.5 | |
| BC-5.7M | 5.70×2.30×1.15 | 30 | 5.30 | 2270 | 4745 | |
| BF-5.7M | 5.70×2.30×1.15 | 30 | 5.30 | 2610 | 5085 | |
| BC-6.5M | 6.50×2.32×1.15 | 36 | 6.10 | 2860 | 5830 | |
| BF-6.5M | 6.50×2.32×1.15 | 36 | 6.10 | 3135 | 6105 | |
| BC-7.5M | 7.50×2.70×1.20 | 58 | 7.00 | 2840 | 7625 | |
| BF-7.5M | 7.50×2.70×1.20 | 58 | 7.00 | 3145 | 7930 | |
| BC-8.5M | 8.50×3.15×1.20 | 85 | 8.10 | 4360 | 11372.5 | |
| BF-8.5M | 8.50×3.15×1.20 | 85 | 8.10 | 4653 | 11665.5 | |
| BC-10.3M | 10.30×3.70×1.25 | 130 | 9.73 | 485J-3/30 | 5615 | 16340 |
| BF-10.3M | 10.30×3.70×1.25 | 130 | 9.73 | 6180 | 16905 |
※BC stands for cargo version and BF stands for tanker version.
* Please contact us for final confirmation on above data before you place order.
