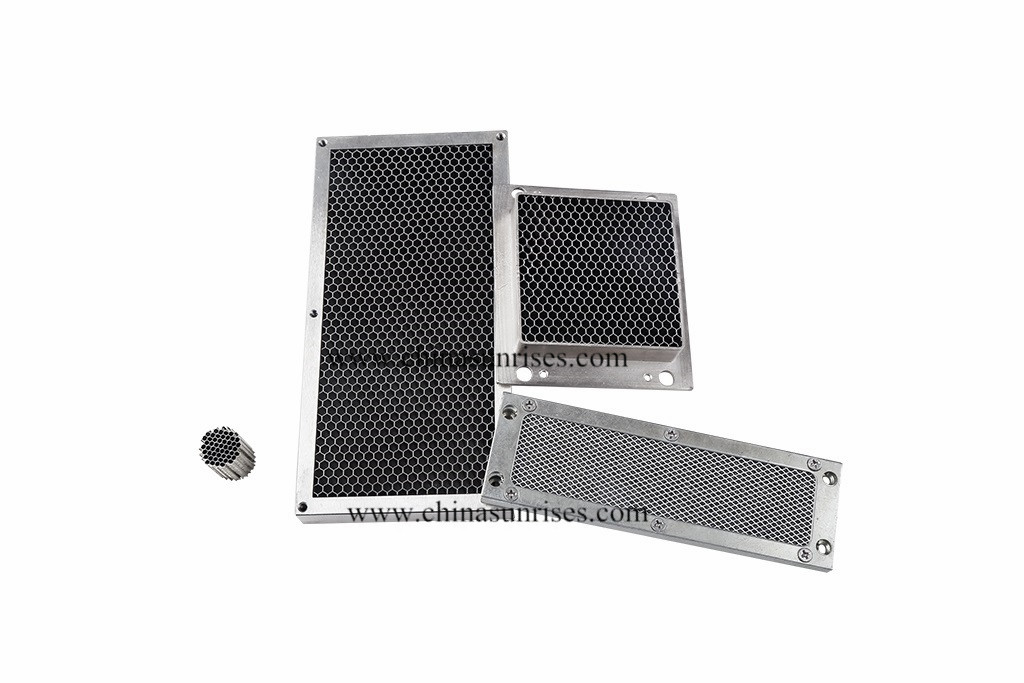

Stainless Steel Honeycomb

Function: Anti-Static, Fireproof
Surface Treatment: PE Coated, PVDF Coated
Material: Al3003, Al5052
Core Thickness: 4-48mm
Size: Can be Customized
Foil Thickness: 0.02-0.10mm

Hole Type: Regular/Micropore/Slant
Certificates: ISO9001, SGS, MA, ilac-MRA, CNAS
Side Length(a): 0.6-30mm
Adhesive: Environmental Adhesive Film
Product Description

Aluminum honeycomb core is strongly laminated with multi-layers of aluminum foils by adhesive film, which are expanded into various sizes per customers’ request. Its performance mainly depends on aluminum foils (aluminum alloy grade 3003/5052), node adhesive and specification(foil thickness & cell size).

Aluminum honeycomb is highly desirable due to its incredibly high strength-to-weight ratio and is applicable wherever lightness and strength are required, such as Office Building, Commercial Center, Aerospace, Marine, Defence, Rail and Automotive industries, etc.

Sunrises specializes in high quality aluminum honeycomb core & honeycomb panel which are used for a wide variety of applications. Our products will be tailored to the exact requirements of the customers. Strive to provide cost-effective & environmental solutions in collaboration with customers at home and aboard.

Aluminum Honeycomb Core for Building Materials
Aluminum Alloy Grade: 3003 or 5052
Standard Core Thickness: 15mm, 20mm, 25mm /per request
Standard Side Length: 4mm, 6mm, 8mm, 10mm /per request
Standard Foil Thickness: 0.04mm, 0.06mm, 0.08mm /per request

Standard honeycomb can be expanded to the following sizes:
W 1220mm x L 2440mm
W 1220mm x L 3000mm
W 1500mm x L 3000mm

Other sizes are available on request. Depending on cell size, up to 20000mm can be achieved in the L direction.

Ask for price

Honeycomb Core Index

Side length	Incircle Diameter		Foil Thickness	*Max. Expanded Size (WL)**
mm	mm	inch	mm	mm
0.6	1.016	1/25	0.02	300×500
1	1.588	1/16	0.03/0.04	1000×1000
1.5	2.540	1/10	0.03/0.04	1200×1500
1.83	3.175	1/8	0.04	1600×2000
			0.06	1600×1600
2	3.175	1/8	0.04	1600×2000
			0.06	1600×1600
2.5	4.233	1/6	0.04	1600×2200
			0.06	1600×2000
3	5.080	1/5	0.04	1600×2400
			0.06	1600×2200
			0.08	1600×2000
			0.10	1600×1800
4	6.350	1/4	0.04	1600×3100
			0.06	1600×2400
			0.08	1600×2200
			0.10	1600×2000
5	8.467	1/3	0.04	1600×4000
			0.06	1600×3000
			0.08	1600×2200
			0.10	1600×2000
6	9.525	3/8	0.04	1600×4600
			0.06	1600×3600
			0.08	1600×2800
			0.10	1600×2400
7.5	12.7	1/2	0.04	1600×6000
			0.06	1600×4000
10	19.05	3/4	0.04	1600×7500
			0.06	1600×5000
12	20.32	4/5	0.04	1600×9000
			0.06	1600×6000
15	25.4	1	0.04	1600×12000
			0.06	1600×7500
20	34.925	1 3/8	0.04	1600×15000
			0.06	1600×10000
30	50.8	2	0.04	1600×20000
			0.06	1600×15000

Features

Excellent Rigidity & Strength
Lightweight & Energy-Saving
Fireproof & Waterproof
Heat & Sound Insulation
Moisture & Corrosion Resistance
Easy to Install & Maintenance
Super Flatness and Rigidity
Environmental-Friendly
Good Thermo Stability with Temperatures up to 350°
