Ringlock System Standard

Ringlock Scaffolding System consists of hot dipped galvanized steel pipe and modular components that are assembled together using integral wedge connectors. Our ring-Lock system is a modular scaffold system which can provide major saving in labor cost while meeting the demands for safety, ease of handling and reductions in maintenance.

Components: Ringlock Standard With Spigot, Ring-Lock Ledger, Ring-Lock Diagonal, Wedge Pin, Base Collar, Steel Plank, Steel Stair Case.
Feature:
1.Time efficient during assembly and dismantling .
2.Safe and simple one-man assembly
3.No loose parts
4.Maintenance free

Items: Ringlock/ Rosette Lock Steel Scaffold System
Advantage: Economic and versatile design
Surface: Hot dipped galvanized
Mateiral: Q345/Q235
Performance: good bearing capacity,durable & stable
Test: SGS BV
Dimension: M48/M60 or as customer’s rerquest
OEM service available

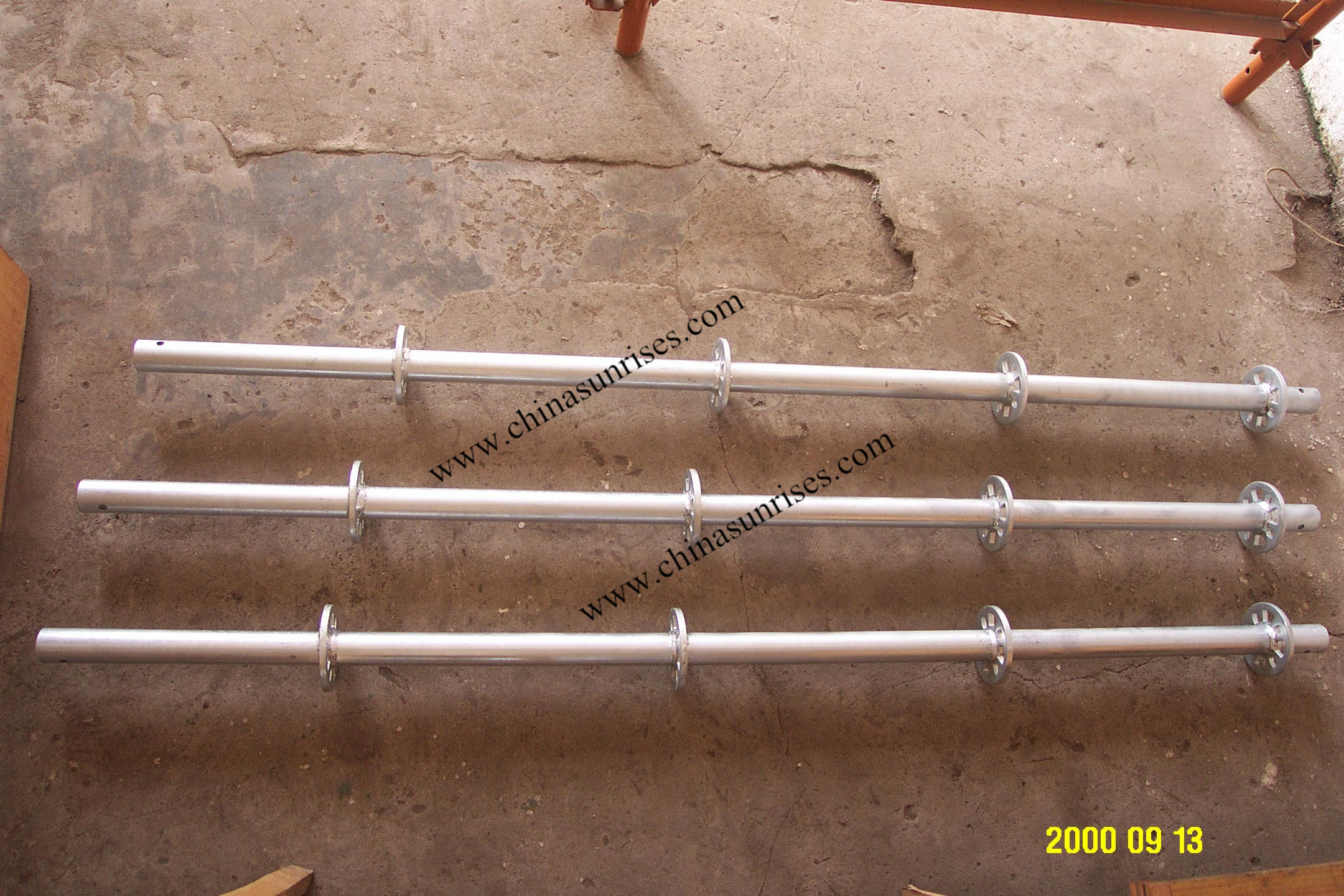

RINGLOCK STANDARD WITH SPIGOT

(48.3mm x 3.2mm, Q345, Hot Dipped Galvanized)

Description	Weight/ length
Ring-Lock Standard 500mm	2.76kg
Ring-Lock Standard 1000mm	5.18kg
Ring-Lock Standard 1500mm	7.61kg
Ring-Lock Standard 2000mm	10.03kg
Ring-Lock Standard 2500mm	12.45kg
Ring-Lock Standard 3000mm	14.87kg
Ring-Lock Standard 4000mm	19.72kg
