Project Description

Pressed Fixed Coupler

1) size: 48.3*48.3mm
2) Min.Slip Load:15KN
3) Distortion Load:30KN
4)Weight:1.24–1.26kg/pc
5)Package:in cartons or in weaving bags then in bundle
6)OEM service is available

German type   America type    Italian type   British type    Korean type

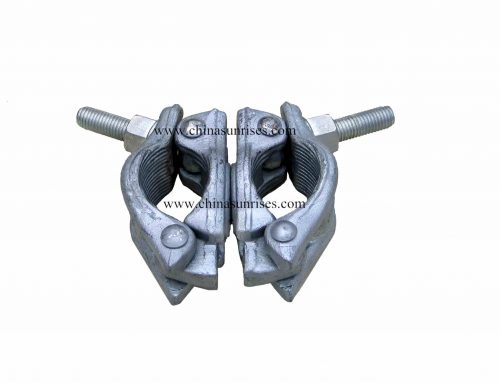

Fixed and swivel Scaffolding Couplers
Specification: 48X48 48X60 60X60
Material: Q235 Q345
Surface Treatment: Painted, Powder Coating, Galvanized or HDG

Specification

Product name Scaffolding couplers
Type Right-angle coupler, swivel coupler, connecting coupler
Materials Q235/Q345 grade steel
Standard EN74/BS1139/SGS/CE/ISO9001:2000
Dimensions 48.3×48.3mm/48.3×60.3mm/48.3×76.3mm
Nut size 17/19/21/23mm
Strength of T bolts Class 4.8/6.8/8.8
Surface Treatment Cold galvanized, Hot dip galvanized, Painted, Powder coating
Appearance color red paint, blue paint, yellow paint, green paint, bright galvanized
Standard weight 0.85kg, 0.9kg,1kg,1.1kg,1.2kg
Feature High Breaking Strength/Durable/Easy to Assemble and Dismantle
Packing 25 pcs/woven bags



Ask for price
