Project Description

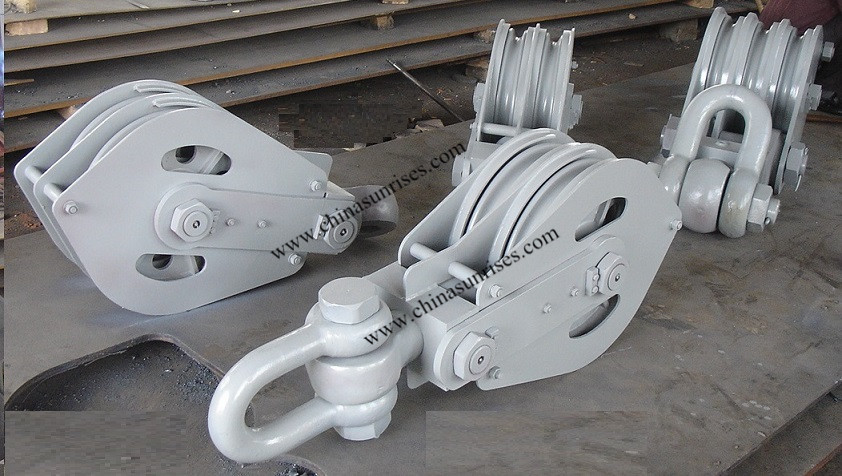

JIS F 3421 Cargo Block
Single Sheave, Bush Type
Type | SWL(Ton) | PL(Ton) | Shackle |
220-1A | 1.4 | 5.6 | BB.SB22 |
220-1B | 1.4 | 8.4 | BB.SB26 |
240-1A | 1.75 | 7 | BB.SB26 |
240-1B | 1.75 | 10.5 | BB.SB30 |
280-1A | 2.25 | 9 | BB.SB30 |
280-1B | 2.25 | 13.5 | BB.SB34 |
340-1A | 3.5 | 14 | BB.SB34 |
340-1B | 3.5 | 21 | BB.SB42 |
410-1A | 5 | 20 | BB.SB40 |
410-1B | 5 | 30 | BB.SB50 |
Double Sheave Bush Type
Type | SWL(Ton) | PL(Ton) | Shackle |
240-2A | 6.5 | 13 | BB.SB34 |
240-2B | 8 | 16 | BB.SB38 |
280-2A | 8.5 | 17 | BB.SB38 |
280-2B | 10 | 20 | BB.SB40 |
340-2A | 13 | 26 | BB.SB46 |
340-2B | 16 | 32 | BB.SB55 |
410-2A | 19 | 38 | BB.SB60 |
410-2B | 23 | 46 | BB.SB65 |
Tripple Sheave Bush Type
Type | SWL(Ton) | PL(Ton) | Shackle |
410-3A | 29 | 54 | BB.SB70 |
410-3B | 33 | 58 | BB.SB75 |
430-3A | 32 | 57 | BB.SB75 |
430-3B | 36 | 61 | BB.SB80 |
410-4A | 36 | 61 | BB.SB80 |
410-4B | 40 | 64 | BB.SB80 |
430-4A | 40 | 64 | BB.SB80 |
430-4B | 44 | 68 | BB.SB85 |
Country of Origin : CHINA
* Please contact us for final confirmation on above data before you place order.
