JIS F 2030-1978 Single Point Mooring Pipes Type B

JIS F 2030-1978 Single Point Mooring Pipes are used for temporary mooring and are used for the guidance of rope mooring lines on board for large vessels.
Prevent wear and tear of mooring line

Welded at vessel bow
Material: Cast Steel
Types: Type A & Type B
Certificate : BV,CCS,ABS,DNV,mill certificate etc
Treatment: Painted Primer or Galvanized or according to Customer’s request
Country of Origin : CHINA

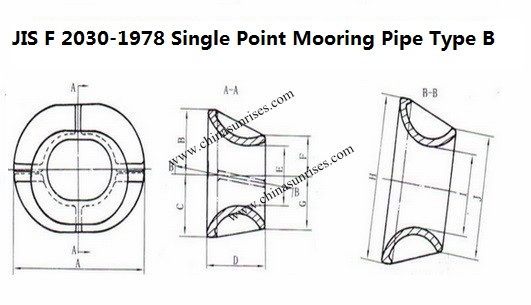

Type B

Size	A mm	B mm	C mm	D mm	E mm	H mm	l mm	Weight KG
400	800	320	300	350	300	800	400	190
500	960	370	350	400	400	960	500	310
600	1120	420	400	450	450	1120	600	460
700	1280	470	450	500	500	1280	700	660
800	1440	520	500	550	600	1440	800	830
