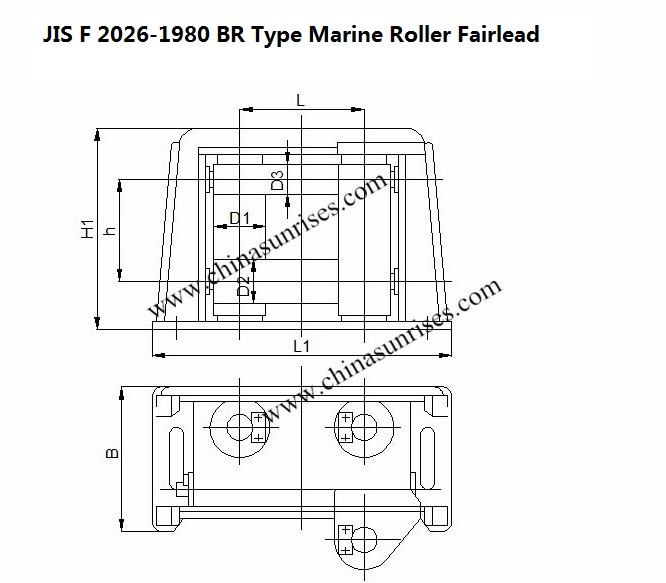

JIS F 2026-1980 BR Type Marine Roller Fairlead

We can supply roller fairlead, Fairleads with horizontal rollers according to JISF, DIN and GB standards .
Material: Cast Steel, Cast Iron
Certificate : CCS , BV , LR , BV,mill certificate etc
Good wear and corrosion resistance.
Treatment: Blasting then Painted Epoxy or according to Customer’s request
Country of Origin : CHINA

BR Type

Nominal Dia (mm)	Open Size (mm)	Wire Rope Dia (mm)	Working Load T	Weight KG
140	175 X 195	18	12	235
160	175 X 205	22	14	353
180	190 X 210	25	16	496
200	195 X 220	28	25	648
250	250 X 270	35	38	1,176
315	320 X 320	42	45	2,050
