Project Description

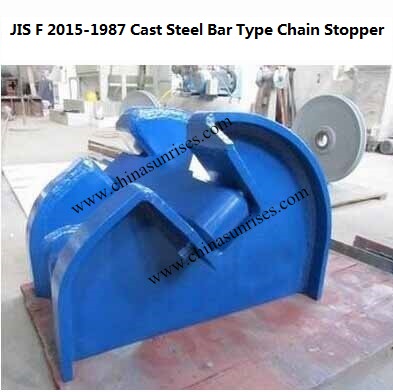

JIS F 2015-1987 Cast Steel Bar Type Chain Stopper
When the vessel mooring , chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load and can protect the windlass. It can withstand 80% of Chain Cable’s breaking load
Certificate : CCS,BV, ABS,DNV etc. Classification Society Certificates
Treatment: Anti-rust paint.
Country of Origin : CHINA
Nominal Chain
Dimensions (mm)
Weight
Dia
B
H
H2
L
h
B2
KG
38-40
336
378
130
540
68
65
110
42-44
366
412
142
590
75
72
138
46-48
397
450
155
640
82
78
177
50-52
428
491
170
695
88
85
214
54-56
457
528
182
745
95
92
261
58-60
488
465
195
795
102
98
319
62-64
517
600
208
850
109
104
396
66-68
547
635
220
900
116
110
482
70-73
582
675
233
960
125
117
609
76-78
617
715
245
1,020
133
123
740
* Please contact us for final confirmation on above data before you place order.
JIS F 2015-1987 Cast Steel Bar Type Chain Stopper
When the vessel mooring , chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load and can protect the windlass. It can withstand 80% of Chain Cable’s breaking load
Certificate : CCS,BV, ABS,DNV etc. Classification Society Certificates
Treatment: Anti-rust paint.
Country of Origin : CHINA
Nominal Chain | Dimensions (mm) | Weight | |||||
Dia | B | H | H2 | L | h | B2 | KG |
38-40 | 336 | 378 | 130 | 540 | 68 | 65 | 110 |
42-44 | 366 | 412 | 142 | 590 | 75 | 72 | 138 |
46-48 | 397 | 450 | 155 | 640 | 82 | 78 | 177 |
50-52 | 428 | 491 | 170 | 695 | 88 | 85 | 214 |
54-56 | 457 | 528 | 182 | 745 | 95 | 92 | 261 |
58-60 | 488 | 465 | 195 | 795 | 102 | 98 | 319 |
62-64 | 517 | 600 | 208 | 850 | 109 | 104 | 396 |
66-68 | 547 | 635 | 220 | 900 | 116 | 110 | 482 |
70-73 | 582 | 675 | 233 | 960 | 125 | 117 | 609 |
76-78 | 617 | 715 | 245 | 1,020 | 133 | 123 | 740 |
* Please contact us for final confirmation on above data before you place order.
