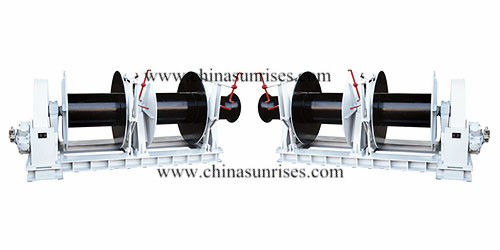

Hydraulic Single Mooring Winch(Two Drum)

Hydraulic Single Mooring Winch

Hydraulic Single Mooring Winch can be single drum and double drum. Hydraulic motor have high mechanical efficiency and large torque, can drive different distributor as per different working conditions.
Feature: Compact structure, small size, light, safety, high efficiency, large torque, good stability, low noise, reliable operation, etc.

Driven Model: Electric or Hydraulic
Configuration: One or two mooring drums (or split drum), one or two warping heads, with or without warping head and gypsy.
Brake: Failsafe manual or hydraulic brake.
Clutch: Manual or hydraulic operated.
Controls: Local or Remote

Specification
Hawser Drum Load: 30KN ~ 250KN
Speed: 15 m/min
Rope Size: 50×150 ~100×220 (mm x m)
Motor: 18.5 ~110KW
Certificate : CCS, BV, ABS, GL, NK,mill certificate etc
Country of Origin : CHINA

Type	Hawser Drum			Motor Power
	Load (KN)	Speed (m/min)	Rope Size (mm×m)	(kW)
YB2F30	30	15	50×150	18.5
YB2F40	40	15	50×150	18.5
YB2F50	50	15	60×150	22
YB2F60	60	15	70×160	30
YB2F70	70	15	70×160	30
YB2F80	80	15	80×180	37
YB2F100	100	15	80×180	37
YB2F125	125	15	80×200	55
YB2F150	150	15	80×200	75
YB2F200	200	15	100×220	90
YB2F250	250	15	100×220	110
