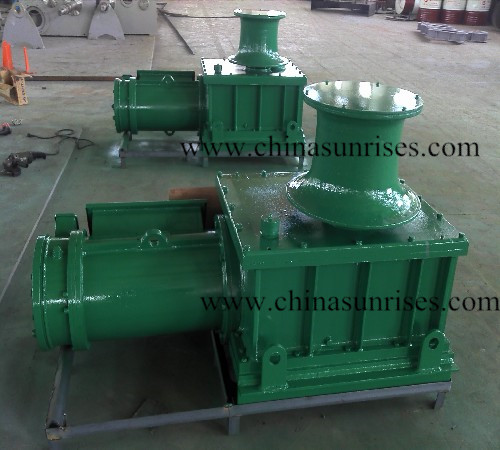

Horizontal Electric Capstan
Marine Electric/Hydraulic Mooring Rope Capstan can apply force to ropes, cables, and hawsers. Capstan is powered by electrically, hydraulically, pneumatically, or via an internal combustion engine
Drive: Electric/ Hydraulic
Warping head of the capstan uses cast steel.
Rated pull of the 1st layer can reach from 3MT to 15MT.
Max wire speed of this capstan winch is 18m/min.
Local control is available for customers.
Warping Load: 5 ~ 250KN
Warping Speed: ≥ 18 m/min
Wire Dia.: Ø11 ~ Ø46mm
Paint: According to your requirements
Lead Time: 60 days to 120 days after order confirmation.
Certificate : CCS, BV, DNV, ABS, GL, LR, NK, RINA, mill certificate etc
Country of Origin : CHINA
| Warping Load KN |
Warping Speed m/min |
Wire Dia mm |
Electric Motor KW |
Hydraulic Motor KW |
| 5 | ≥18 | Ø11 | 3/1.2 | 5.5 |
| 10 | ≥18 | Ø11 | 4.3/1.7 | 7.5 |
| 20 | ≥18 | Ø15 | 7.5/7.5/5 | 15 |
| 30 | ≥18 | Ø17.5 | 16/16/11 | 18.5 |
| 40 | ≥18 | Ø20.5 | 16/16/11 | 18.5 |
| 50 | ≥18 | Ø20.5 | 22/22/16 | 30 |
| 70 | ≥15 | Ø26 | 30/30/22 | 45 |
| 100 | ≥15 | Ø28 | 45/45/30 | 55 |
| 120 | ≥15 | Ø32.5 | 60/60/45 | 75 |
| 150 | ≥15 | Ø36.5 | 60/60/45 | 90 |
| 200 | ≥15 | Ø40 | 75/75/36 | 110 |
| 250 | ≥12 | Ø46 | 75/75/36 | 110 |
* Please contact us for final confirmation on above data before you place order.
