Project Description

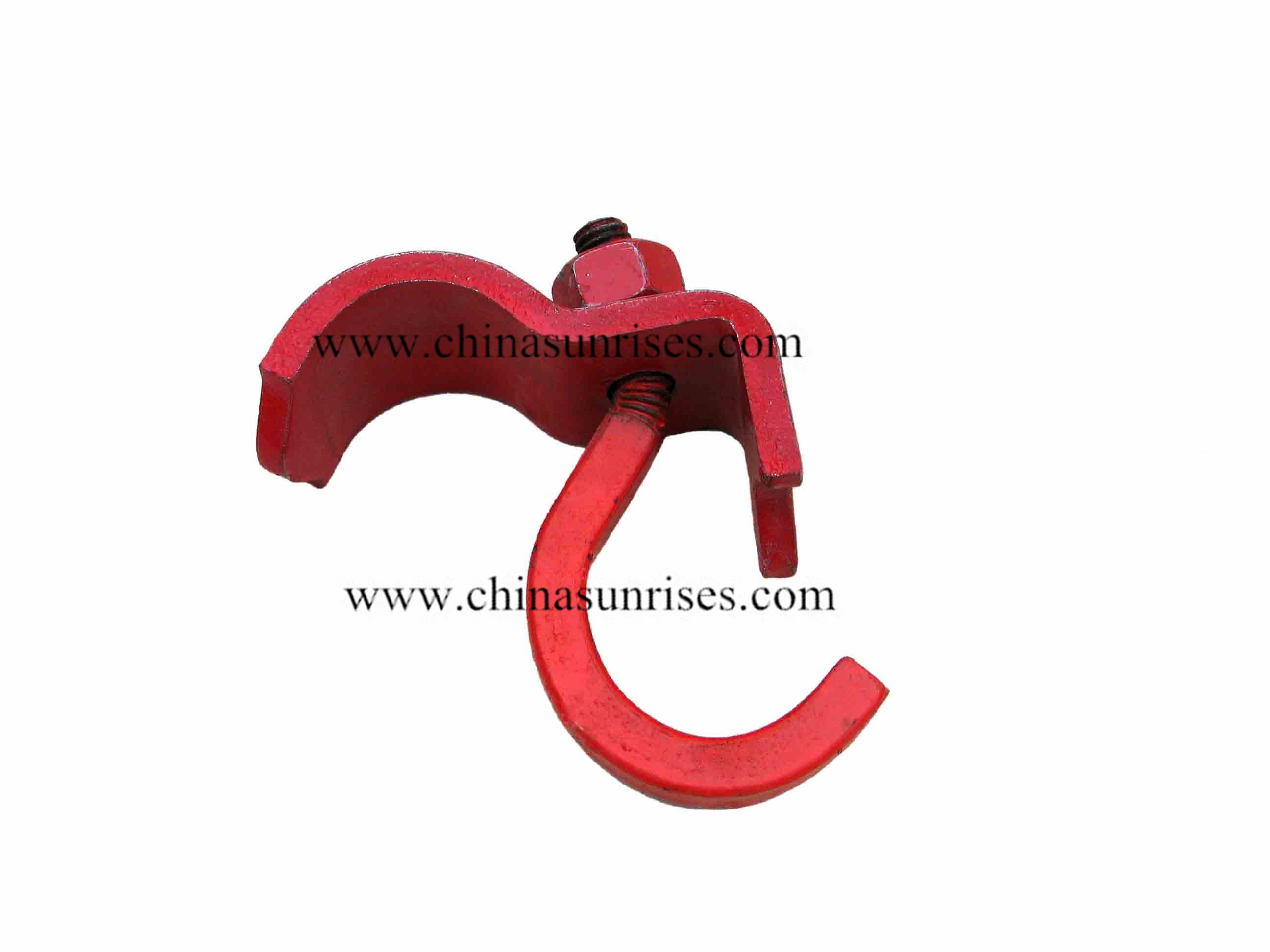

Hook Coupler
Fixed and swivel Scaffolding Couplers
Specification: 48X48 48X60 60X60
Material: Q235 Q345
Surface Treatment: Painted, Powder Coating, Galvanized or HDG
We can manufacture Forged Fixed Coupler, forged swivel coupler, pressed fixed coupler, pressed swivel coupler at good quality and fast delivery.
German type America type Italian type British type Korean type
Specification
Product name | Scaffolding couplers |
Type | Right-angle coupler, swivel coupler, connecting coupler |
Materials | Q235/Q345 grade steel |
Standard | EN74/BS1139/SGS/CE/ISO9001:2000 |
Dimensions | 48.3×48.3mm/48.3×60.3mm/48.3×76.3mm |
Nut size | 17/19/21/23mm |
Strength of T bolts | Class 4.8/6.8/8.8 |
Surface Treatment | Cold galvanized, Hot dip galvanized, Painted, Powder coating |
Appearance color | red paint, blue paint, yellow paint, green paint, bright galvanized |
Standard weight | 0.85kg, 0.9kg,1kg,1.1kg,1.2kg |
Feature | High Breaking Strength/Durable/Easy to Assemble and Dismantle |
Packing | 25 pcs/woven bags |
