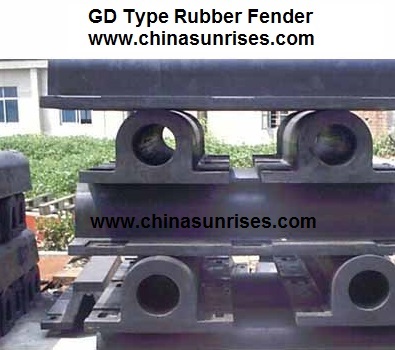

GD Type Rubber Fender

It is typically mounted to a dock or a ship to reduce the collision force between the dock and the ship generated during mooring and berthing,thus preventing ships and docks from being damaged.

The wing type rubber fender offers a high energy absorption performance than semicircular type ones.Customers can choose a proper type according to their specific demands.

The product has high strength and offers long service life.

1.The performance of reaction force and energy absorption is higher than type D;
2.It can be installed firmly and has long service life;
3.It is usually suitable for the frame type harbor.

Type H B b L Q P S h T t n
GD280H×1000L 280 540 430 1000 150 700 165/170 120 82/90 41/45 1
-600 -490
GD280H×1500L 280 540 430 1500 150 600 165/170 120 82/90 41/45 2
-600 -490
GD280H×2000L 280 540 430 2000 145 570 165 120 82 41 3
GD280H×2500L 280 540 430 2500 150 550 165 120 82 41 4
GD300H×1000L 300 600 490 1000 150 700 165 120 90 45 1
G300H×1500L 300 600 490 1500 150 600 165 120 90 45 2
GD300H×2000L 300 600 490 2000 145 570 165 120 90 45 3
GD300H×2500L 300 600 490 2500 150 550 165 120 90 45 4

* Please contact us for final confirmation on above data before you place order.
