Project Description

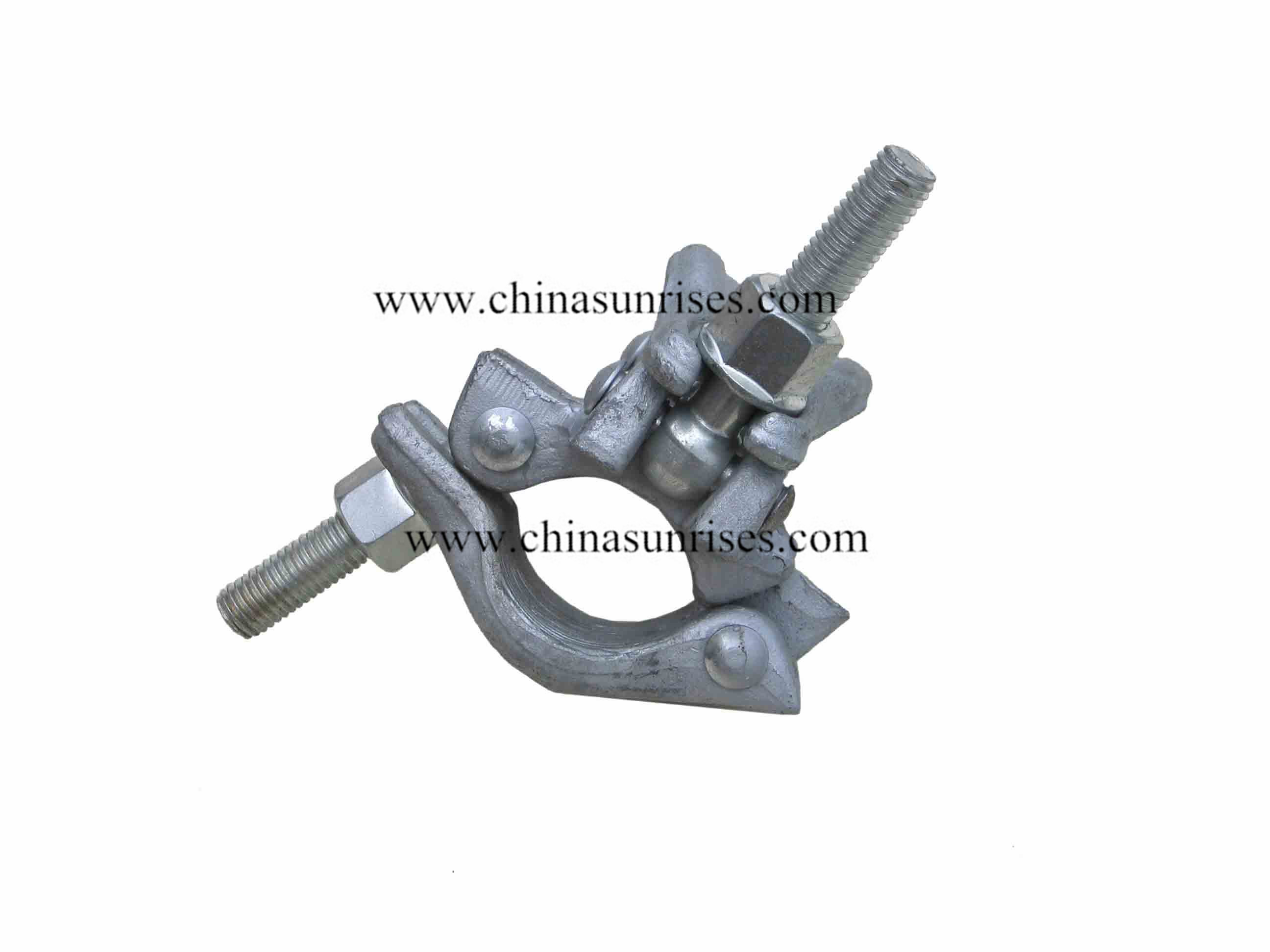

Forged Fixed Coupler
Fixed and swivel Scaffolding Couplers
Specification: 48X48 48X60 60X60
Material: Q235 Q345
Surface Treatment: Painted, Powder Coating, Galvanized or HDG
German type America type Italian type British type Korean type
Specification
Product name | Scaffolding couplers |
Type | Right-angle coupler, swivel coupler, connecting coupler |
Materials | Q235/Q345 grade steel |
Standard | EN74/BS1139/SGS/CE/ISO9001:2000 |
Dimensions | 48.3×48.3mm/48.3×60.3mm/48.3×76.3mm |
Nut size | 17/19/21/23mm |
Strength of T bolts | Class 4.8/6.8/8.8 |
Surface Treatment | Cold galvanized, Hot dip galvanized, Painted, Powder coating |
Appearance color | red paint, blue paint, yellow paint, green paint, bright galvanized |
Standard weight | 0.85kg, 0.9kg,1kg,1.1kg,1.2kg |
Feature | High Breaking Strength/Durable/Easy to Assemble and Dismantle |
Packing | 25 pcs/woven bags |
