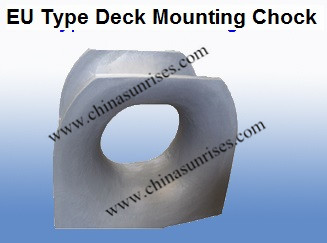

EU Type Deck Mounting Chock

EU Type Deck Mounting Chock is used for temporary mooring.
Prevent wear and tear of mooring lines
Found at the vessel’s bow bulwarks, below the gunwale.

Welded at vessel bow
Material: Cast Steel
Certificate : BV,CCS,DNV,ABS,mill certificate etc
Treatment: Painted Primer or Galvanized or according to Customer’s request
Country of Origin : CHINA

NOMINAL	Dimensions (mm)						MASS
SIZE	A	B	C	D	E	H	(kg)
315 X 250	315	250	815	620	365	380	230
425 X 280	425	280	1,075	785	450	500	378
600 X 315	600	315	1,360	865	507	560	598
600 X 450	600	450	1,360	1,000	575	560	655
600 X 450	600	450	1,360	1,200	675	760	780
