Project Description

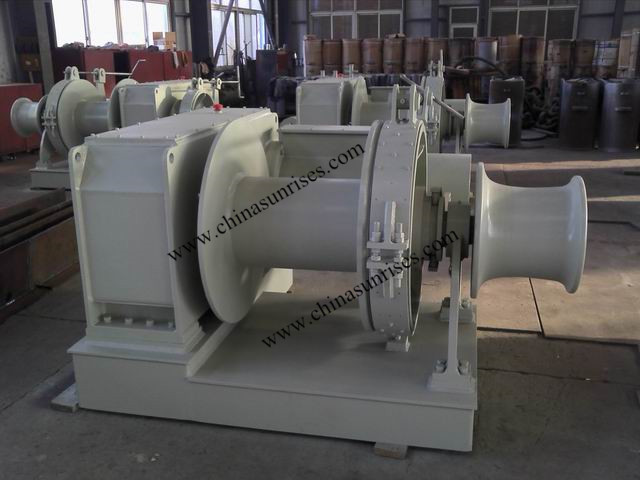

Electric Mooring Winch
Winch is used for anchoring and mooring and cable bonding of the ships, including electric motor, gear box, cable lifter, drum, warping end, clutch unit, and brake unit.
Feature: Simple structure and easy operation.
Drive: Electric/ Hydraulic/Hand
Chain Dia.: From 19mm to 127mm
Clutch: Manually operated jaw clutch
Brake: Manually & hydraulic operated band brake
Control: Local or Remote
Paint: According to your requirements
Lead Time: 60 days to 120 days after order confirmation.
Certificate : CCS, BV, DNV, ABS, GL, LR, NK, RINA,mill certificate etc
Country of Origin : CHINA
| Name | Chain Dia. (mm) |
Working Load (kn) |
Supporting Load (kn) |
Working Speed (m/min) | Warping Load (kn) |
| Φ19/20.5/22 Electric Anchor windlass |
19/20.5/22 | 15.3/17.9/20.6 | 95/110/126 | ≥9 | 10 |
| Φ24/26 Electric Anchor windlass |
24/26 | 24.5/28.7 | 149/175 | ≥9 | 20 |
| Φ28/30 Electric Anchor windlass |
28/30 | 33.3/38.3 | 202/231 | ≥9 | 30 |
| Φ38/40 Electric Anchor windlass |
38/40 | 61.4/68.0 | 365/402 | ≥9 | 40 |
* Please contact us for final confirmation on above data before you place order.
