Project Description

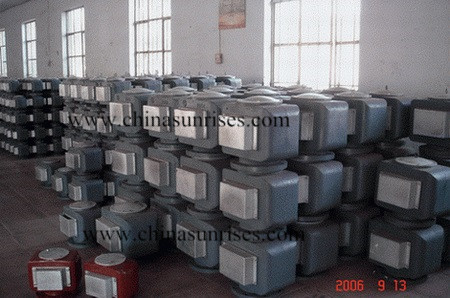

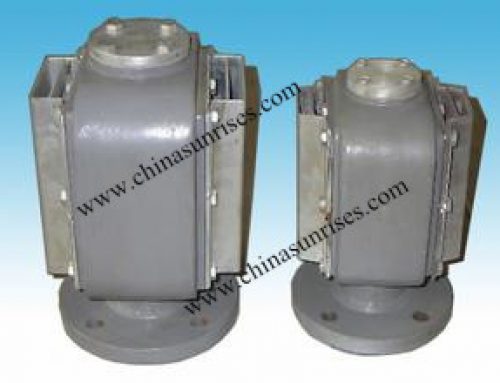

Air Pipe Head
Nominal Diameter: DN 50-DN 350 mm
Valve material : cast iron, cast steel
| Type | Name | Nominal Diameter | Application |
| A, AS | Cap Type Air Vent Head | 50-250 | Oil Tank, Water Tank Air Pipe Up End |
| B, BS | Goose Neck Air Vent Head | ||
| C, CS | Sounding Air Vent Head | 50-100 | |
| D, DS | Float Type Oil Tank Air Vent Head | 50-350 | Oil Tank Air Pipe Up End |
| E, ES | Float Type Water Tank Air Vent Head | Water Tank Air Pipe Up End | |
| FS | Float Ball Type Oil Tank, Water Tank Air Vent Head | Oil Tank, Water Tank Air Pipe Up End |
Marine valve mainly includes butterfly valve,globe valve, check valve, SDNR valve, gate valve, storm valve, quick-closing valve, air vent head, marine strainer and other marine accessories.
We have exported various marine valve to worldwide for more than 15 years.
1.Material: cast iron, cast steel, bronze.
2.Pressure:5k,10k,16K,20K
3.CCS,BV,DNV,ABS, RINA, DNV, NK, IRS, mill certificates are available.
4.Lead time: According to the quantity. We have many stocks for some standard valve if you need them to replace we can delivery immediately.
5.Warranty: 12months after the shipment.
* Please contact us for final confirmation on above data before you place order.
